Ganter

Vergrendelingsbout met knop

GN 817-5-5-BK-NI Roestvrij staal met K-moer, PA SW
NI - Roestvrij staal
Art.-Nr.: 1213914Leveranciersnummer: 817-5-5-BK-NIdouanetariefnummer: 73181900EAN: 4045525384743

VPE (Verpakking): 10 stukAantal: ​​ 1 stukPakketgeschikt
Artikel in 213 varianten beschikbaar:
Op korte termijn verkrijgbaar

Beschrijving
Stainless steel indexing plungers GN 817 with rest position (Type C / CK) are used for such applications where the plunger has to stay in its retracted position. To achieve this, the knob is rotated by 90° degrees after being retracted. A notch keeps the plunger in this position.
Specificaties

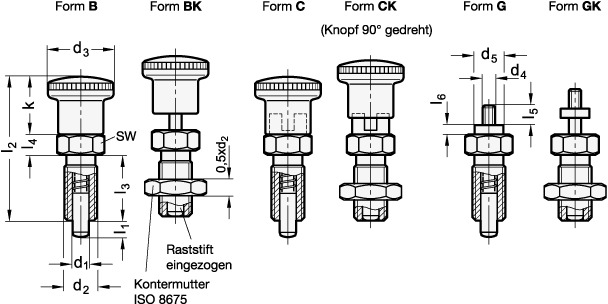

Boutdiameter d1
5
Eindsterkte
15
Federdruck Anfang
5 N
Gewicht
0.024 kg
L2
40
Materiaal
NI - Roestvrij staal
Rastepad l1
5
RoHS
Ja
SW
12
Spring pressure in N ≈start
5
Vorm
BK - zonder arrêtering, met contramoer
d2
M 10 x 1
d3
19
d4
M 4
d5
8
k
16
l3
18
l4
6
l5
5.5
l6
3
