Ganter

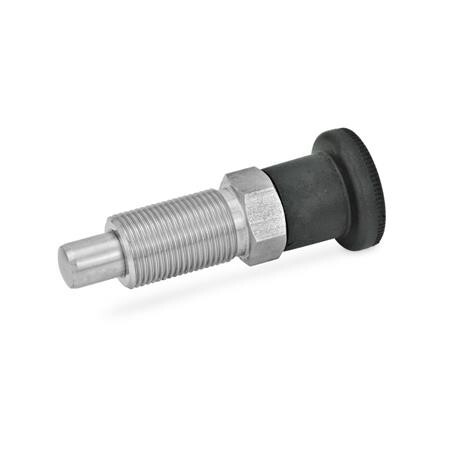

Vergrendelingsbout met knop

GN 817-6-9-B-NI Roestvrij staal zonder K-moer, PA SW
NI - Roestvrij staal
Art.-Nr.: 1213957Leveranciersnummer: 817-6-9-B-NIdouanetariefnummer: 73181900EAN: 4045525385160

VPE (Verpakking): 10 stukAantal: ​​ 1 stukPakketgeschikt
Artikel in 213 varianten beschikbaar:
Op korte termijn verkrijgbaar

Beschrijving
Stainless steel indexing plungers GN 817 with rest position (Type C / CK) are used for such applications where the plunger has to stay in its retracted position. To achieve this, the knob is rotated by 90° degrees after being retracted. A notch keeps the plunger in this position.

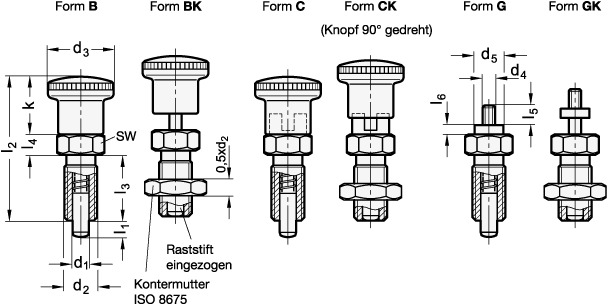

Specificaties
Boutdiameter d1
6
Eindsterkte
25
Federdruck Anfang
6 N
Gewicht
0.029 kg
L2
48
Materiaal
NI - Roestvrij staal
Rastepad l1
9
RoHS
Ja
SW
14
Spring pressure in N ≈start
6
Vorm
B - zonder arrêtering, zonder contramoer
d2
M 12 x 1,5
d3
23
d4
M 5
d5
9
k
20
l3
22
l4
6
l5
7
l6
3.5
