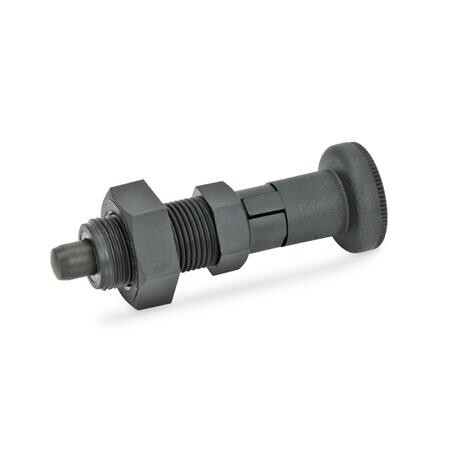

Borgbout met borgmoer

GN 617.2-10-CK-ST Elesa 51632
ST - Staal
Art.-Nr.: 1208515Leveranciersnummer: 617.2-10-CK-STEAN: 4045525709973

VPE (Verpakking): 10 stukAantal: ​​ 1 stukPakketgeschikt
Artikel in 64 varianten beschikbaar:
Op korte termijn verkrijgbaar

Beschrijving
Indexing plungers GN 617.2 with plastic body are a reasonably priced indexing plunger variant. The dimensions correspond to those of the GN 617 or GN 617.1 indexing plungers. Indexing plungers Type C / CK with rest position are used for such applications where the plunger has to stay in its retracted position. To achieve this, the knob is rotated by 90° degrees after being retracted. A notch keeps the plunger in this position.

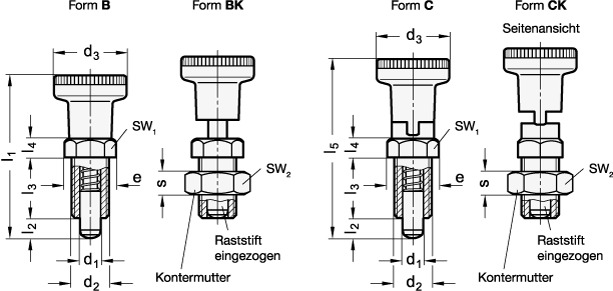

Specificaties
Boutdiameter d1
10
Eindsterkte
45
Federdruck Anfang
19 N
Gewicht
0.069 kg
L1
80
Materiaal
ST - Staal
Max. tightening torque in Nm
25
RoHS
Ja
Spring pressure in N ≈start
19
Vorm
CK - met arrêtering, met contramoer
Vorm C/CK
10
d2
M 20 x 1,5
d3
31
e
25
e ≈
25
l1 ≈
80
l2 Vorm B/BK
10
l3
33
l4
10
l5
91
l5 ≈
91
max. Anzugsmoment
25 Nm
s
11
sw1
22
sw2
30
