Borgbout met borgmoer

GN 617.2-6-CK-NI Elesa 51672
NI - Roestvrij staal
Art.-Nr.: 1208529Leveranciersnummer: 617.2-6-CK-NIdouanetariefnummer: 39269097EAN: 4045525709874

VPE (Verpakking): 10 stukAantal: ​​ 1 stukPakketgeschikt
Artikel in 64 varianten beschikbaar:
Op korte termijn verkrijgbaar

Beschrijving
Indexing plungers GN 617.2 with plastic body are a reasonably priced indexing plunger variant. The dimensions correspond to those of the GN 617 or GN 617.1 indexing plungers. Indexing plungers Type C / CK with rest position are used for such applications where the plunger has to stay in its retracted position. To achieve this, the knob is rotated by 90° degrees after being retracted. A notch keeps the plunger in this position.

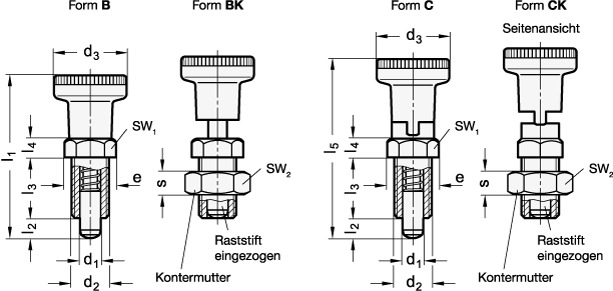

Specificaties
Boutdiameter d1
6
Eindsterkte
24
Federdruck Anfang
9 N
Form C / CK
6
Gewicht
0.022 kg
L1
54
Materiaal
NI - Roestvrij staal
Max. tightening torque in Nm
12
RoHS
Ja
Spring pressure in N ≈start
9
Vorm
CK - met arrêtering, met contramoer
d2
M 12 x 1,5
d3
25
e
16
e ≈
16
l1 ≈
54
l2 FormB / BK
6
l3
20
l4
6
l5
61
l5 ≈
61
max. Anzugsmoment
12 Nm
s
8
sw1
14
sw2
19
