Borgbout met borgmoer

GN 617.2-8-BK-NI Elesa 51581
NI - Roestvrij staal
Art.-Nr.: 1208533Leveranciersnummer: 617.2-8-BK-NIdouanetariefnummer: 39269097EAN: 4045525709560

VPE (Verpakking): 10 stukAantal: ​​ 1 stukPakketgeschikt
Artikel in 64 varianten beschikbaar:
Op korte termijn verkrijgbaar

Beschrijving
Indexing plungers GN 617.2 with plastic body are a reasonably priced indexing plunger variant. The dimensions correspond to those of the GN 617 or GN 617.1 indexing plungers. Indexing plungers Type C / CK with rest position are used for such applications where the plunger has to stay in its retracted position. To achieve this, the knob is rotated by 90° degrees after being retracted. A notch keeps the plunger in this position.
Specificaties

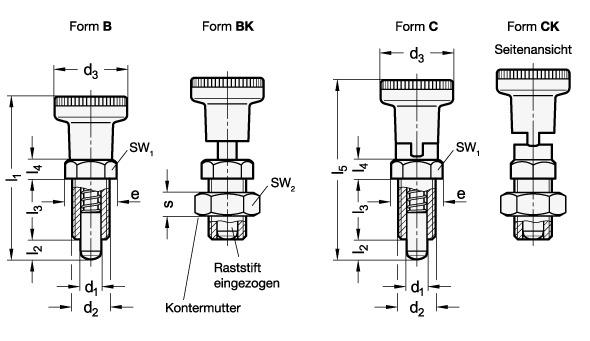

Boutdiameter d1
8
Eindsterkte
30
Federdruck Anfang
11 N
Form C / CK
7
Gewicht
0.032 kg
L1
69
Materiaal
NI - Roestvrij staal
Max. tightening torque in Nm
18
RoHS
Ja
Spring pressure in N ≈start
11
Vorm
BK - zonder arrêtering, met contramoer
d2
M 16 x 1,5
d3
31
e
21.6
e ≈
21.6
l1 ≈
69
l2 FormB / BK
8
l3
26
l4
8
l5
76
l5 ≈
76
max. Anzugsmoment
18 Nm
s
10
sw1
19
sw2
24
