Beschrijving

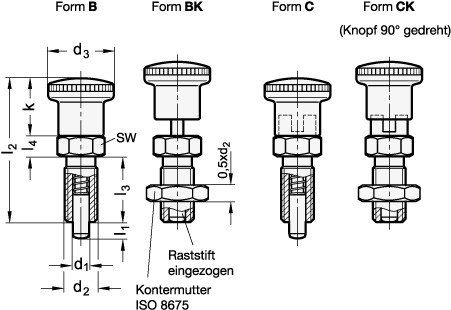

Indexing plungers GN 817 with rest position (Type C / CK) are used for such applications where the plunger has to stay in its retracted position. To achieve this, the knob is rotated by 90° degrees after being retracted. A notch keeps the plunger in this position.
Specificaties
Boutdiameter d1
4
Eindsterkte
12.5
Federdruck Anfang
4 N
Gewicht
0.013 kg
Kleur
RT - rood, RAL 3000, mat
L2
35
Materiaal
ST - Staal
Rastepad l1
6
RoHS
Ja
SW
10
Spring pressure in N ≈start
4
Vorm
CK - met arrêtering, met contramoer
d2
M 8 x 1
d3
16
k
14
l3
16
l4
5
