Beschrijving

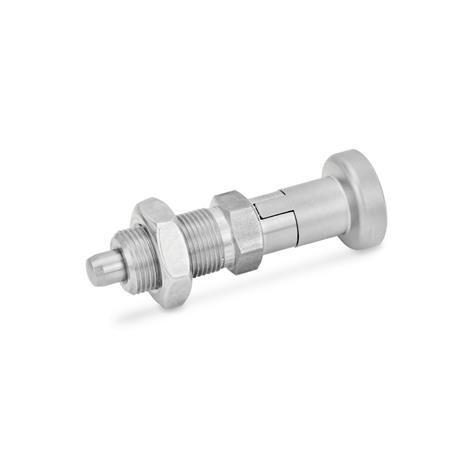

Stainless steel indexing plungers GN 617.1 with rest position are used for such applications where the plunger has to stay in its retracted position. To achieve this, the knob is rotated by 90° degrees after being retracted. A notch keeps the plunger in this position.
Specificaties
Boutdiameter d1
6
Eindsterkte
21
Federdruck Anfang
8 N
Gewicht
0.082 kg
L1
61
L2
6
Materiaal
NI - Roestvrij staal
RoHS
Ja
SW
14
Spring pressure in ≈start
8

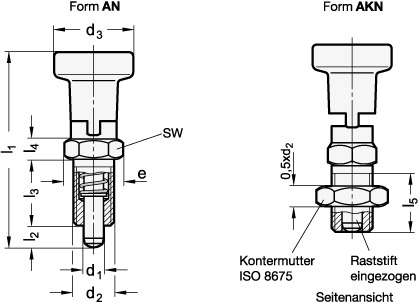

Vorm
AKN - met contramoer, met roestvrijstalen knop
d2
M 12 x 1,5
d3
25
e
16.2
l1 ≈
61
l3
20
l4
6
l5 Min.
17
