Ganter

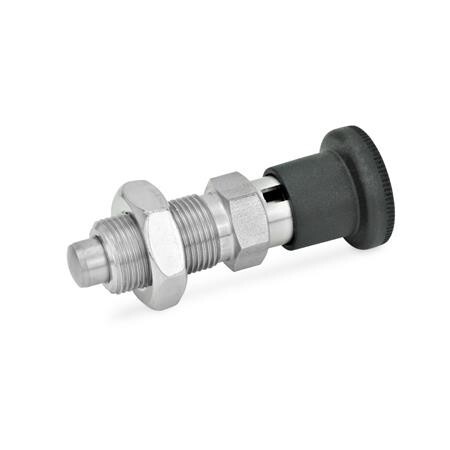

Vergrendelingsbout met vergrendelknop

GN 817-12-15-CK-NI Roestvrij staal met K-moer, PA SW
NI - Roestvrij staal
Art.-Nr.: 1213877Leveranciersnummer: 817-12-15-CK-NIdouanetariefnummer: 73181900EAN: 4045525441323

VPE (Verpakking): 5 stukAantal: ​​ 1 stukPakketgeschikt
Artikel in 213 varianten beschikbaar:
Op korte termijn verkrijgbaar

Beschrijving
Stainless steel indexing plungers GN 817 with rest position (Type C / CK) are used for such applications where the plunger has to stay in its retracted position. To achieve this, the knob is rotated by 90° degrees after being retracted. A notch keeps the plunger in this position.
Specificaties
Boutdiameter d1
12
Eindsterkte
40
Federdruck Anfang
11.5 N
Gewicht
0.170 kg
L2
71.5
Materiaal
NI - Roestvrij staal
Rastepad l1
15
RoHS
Ja
SW
22
Spring pressure in N ≈start
11.5
Vorm
CK - met arrêtering, met contramoer
d2
M 20 x 1,5
d3
33
d4
M 6
d5
12
k
28.5
l3
33
l4
10
l5
8.5
l6
4
