Ganter

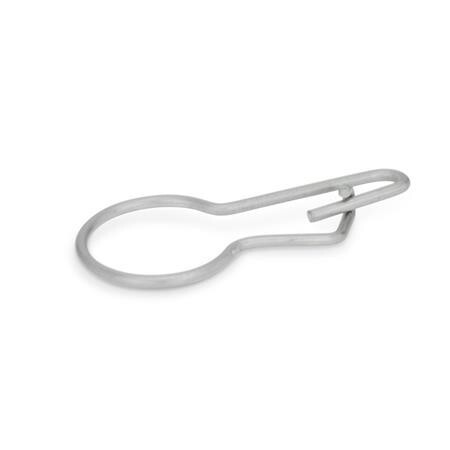

Oogje veiligheidsvariant

GN 111.6-12-S roestvast staal
NI - Roestvrij staal
Art.-Nr.: 1396144Leveranciersnummer: 111.6-12-SEAN: 4045525482906

Aantal: ​​ 1 stukPakketgeschikt
Artikel in 13 varianten beschikbaar:
Op korte termijn verkrijgbaar

Beschrijving

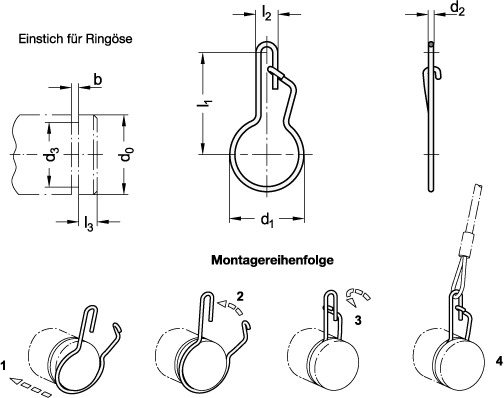

Retaining rings GN 111.6 can be revolving mounted on the cut-in onto shaft ends or handle. Star knobs, for example, can be secured against loss at the place of use with an additional retaining cable. Service standard GN 111.7 lists all standard parts that can be delivered with loss protection, i.e., with groove and retaining ring. Star knobs GN 6336.13 with loss protection are delivered as a complete standard part consisting of a star knobs with cut-in and mounted retaining ring, with retaining cable or ball chain.
Specificaties
L1
18.7
L2
5
Materiaal
NI - Roestvrij staal
Naafdiameter d0
12
Ringdiameter d1
11.4
RoHS
Ja
Vorm
S - Veiligheidsoog
b
1.7
d2
1.1
d3
9.1
l3
2.5
