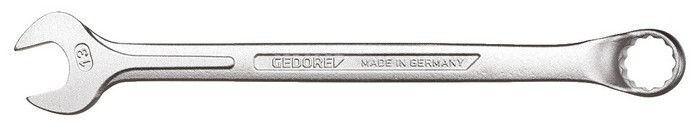

Gearticuleerde combinatiesleutel
SW22 mm L292 mm Form B Gedore 1 B 22Art.-Nr.: 1027944Leveranciersnummer: 1 B 22EAN: 4010886600214
VPE (Verpakking): 10 stukAantal:
1 stukPakketgeschikt
Artikel in 35 varianten beschikbaar:
Prijs en voorraad zichtbaar na login
Beschrijving
Acc. to DIN 3113, Form A, ISO 3318, ISO 7738, Sizes 5 and 5.5 mm with hexagon ring, up from size 6 mm with UD profile, Chrome-vanadium steel 31CrV3, chrome-plated, Carefully forged and professionally machined, Ring: 10° offset from shaft, with UD profile for gentle transmission of force, Overloading indicated by deformation, The offset ring ensures a better grip on deep-seated or inset nuts or bolts, Top-grade industrial quality for the hardest of continuous use, * not standardised
Specificaties
Gesamtbreite
45 mm
Gesamthöhe
29 mm
Gesamtlänge
291 mm
Kopfbreite 1
32 mm
Kopfbreite 2
48,2 mm
Kopfhöhe 1
14,5 mm
Kopfhöhe 2
9 mm
Kröpfhöhe 1
27 mm
Lengte (batterij)
292 mm
Materiaal
CV-staal
Maulstellung 1
15 °
Netto-Gewicht
0,294 kg
Norm
DIN 3113 Vorm B, ISO 3318, ISO 7738
Oberfläche
verchromt
Ring-Profil
UNIT-DRIVE
Ringkröpfung
10 °
Schlüsselweite 1
22 mm
Sleutelwijdte
22 mm
