Oogbout

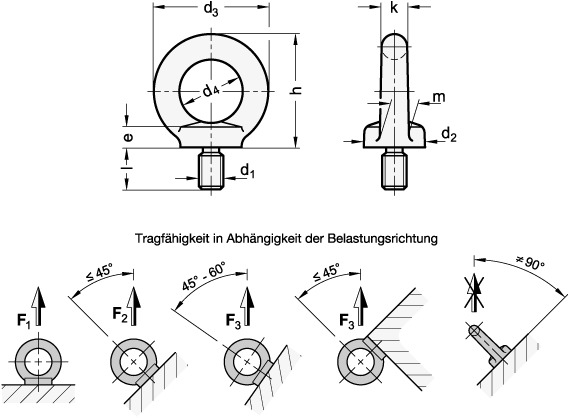

The following guidelines of lifting eye bolts DIN 580 have to be observed in addition to the load values given in the above table: The eye bolt must be of fully screwed in to achieve a perfect contact between the two mating faces. Both threads must be of a equal length and the base material of equal strength to that of the bolt. Operating instructions with more details and specifications are included with every delivery (see also www.ganternorm.com/en/service). The official DIN standard sheet specifies the additional sizes M42, M48, M56, M64, M72 x 6, M80 x 6 und M100 x 6.
