Artikel in 15 varianten beschikbaar:
Prijs en voorraad zichtbaar na login
Beschrijving

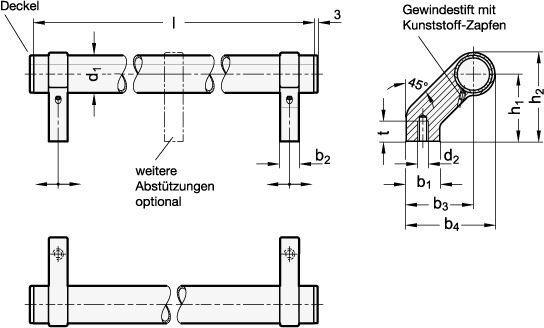

The spacing of the attachment holes of the tubular handles GN 333.2 is adjustable. Further handle legs can be added for very long tubular handles. Further handle legs can be added for very long tubular handles. Individual handle legs for tubular handles Ø 28 (type A) are available under GN 333.8. Tubular handles GN 333.2 are supplied unassembled.
Specificaties
Gewicht
0.380 kg
Greepdiameter d1
28
Lengte l
242
Materiaal
AL - Aluminium
Oppervlakte
SW - zwart, RAL 9005, mat gestructureerd
RoHS
Ja
Schroefdraad
M 8
Vorm
A - Montage vanaf de achterkant (blind gat met schroefdraad)
b1
25
b2
14
b3
50
b4
66
h1
50
h2
66
tmin.
15
