Buisvormig handvat
GN 666.1-30-200-SW Aluminium zwart met KU-coatingArt.-Nr.: 1210924Leveranciersnummer: 666.1-30-200-SWdouanetariefnummer: 83024900EAN: 4045525349230
Aantal:
1 stukPakketgeschikt
Artikel in 24 varianten beschikbaar:
Prijs en voorraad zichtbaar na login
Beschrijving

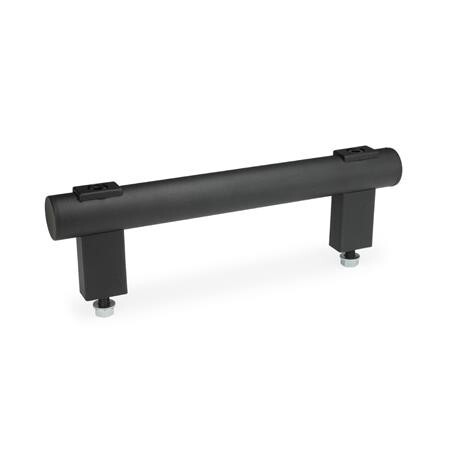

Owing to their large range of variants and their classic design, GN 666.1 tubular handles are the perfect choice for many applications. The mounting screws included allow the installation both from the operator side and the rear side. Tubular handles GN 666.1 and GN 666 of identical length are also suitable for double mounting, e.g. for sliding doors.
Specificaties
Gewicht
0.250 kg
Greepdiameter d1
30
L2
230
Lengte l1
200
RoHS
Ja
Schroefdraad
M 8
Werkstoff / Oberfläche
SW - black, RAL 9005, textured matt
b
18
h
60
l3
170
l4
265
l5
85
l6
17
l7max.
8.5
