Schijfhandwiel met roestvrijstalen bus
GN 521.5-125-K12-RPP - kunststof
Art.-Nr.: 1350727Leveranciersnummer: 521.5-125-K12-Rdouanetariefnummer: 84879090EAN: 4045525097940
Aantal:
1 stukPakketgeschikt
Artikel in 14 varianten beschikbaar:
Prijs en voorraad zichtbaar na login
Beschrijving
Disk handwheels GN 521.5 have recessed grips at their back. The cover conceals clamping elements, e.g. countersunk washers, as well as protruding and recessed shafts. For mounting, the cover is pushed in by hand. For dismantling, the cover can be raised and taken off by applying moderate pressure in the rim of the cover.

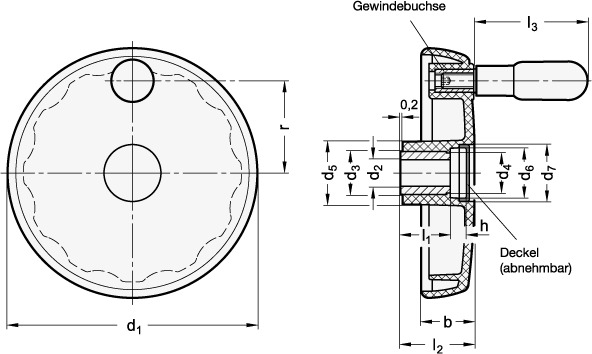

Specificaties
Boormarkering
K - met naafgroef DIN 6885-1 P9
Bore identification
K - with hub groove DIN 6885-1 P9
Buitendiameter d1
125
Diameter (Vorm R) d2
12
Gewicht
0.240 kg
L1
27
L2
39.5
Materiaal
PP - kunststof
Outer diameter d1
125
R
49
RoHS
Ja
Vorm
R - met draaibare handgreep
b
28
d3
26
d4
24
d5
35
d6
28
d7
31
h
11
l3
60
Ø Cylinder handle
18
Ø Zylindergriff
18
