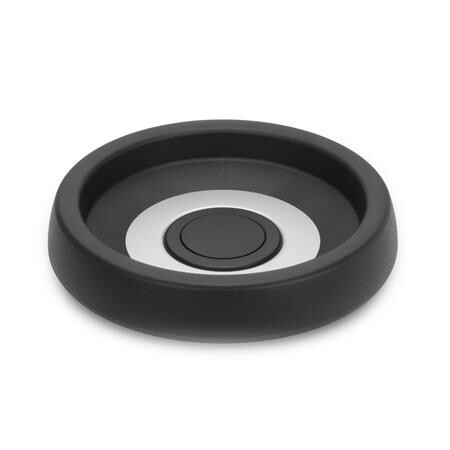

Schijfhandwiel zonder draaigreep
GN 524-100-B10-A Elesa 170307PA - kunststof, polyamide
Art.-Nr.: 1204873Leveranciersnummer: 524-100-B10-AEAN: 4045525275683
Aantal:
1 stukPakketgeschikt
Artikel in 16 varianten beschikbaar:
Prijs en voorraad zichtbaar na login
Beschrijving
Disk handwheels GN 524 are renowned in particular for their design and the matte passivated aluminum ring. The cover shrouds the fixing components such as screws, countersunk washers as well as the shaft end. The cover is inserted by pushing it on by hand. To remove it run a finger with little pressure along the edge of the cap.

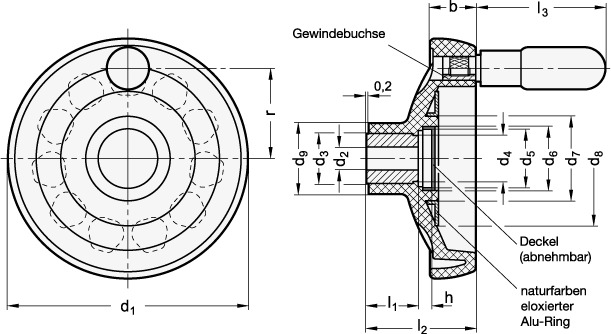

Specificaties
Bohrungskennzeichen
B - ohne Nabennut
Boormarkering
B - zonder naafgroef
Boringdiameter d2
10
Gewicht
0.155 kg
Handwiel diameter d1
100
L1
22
L2
49
Materiaal
PA - kunststof, polyamide
R
37
RoHS
Ja
Vorm
A - zonder handgreep
b
22
d3
22
d4
20
d5
25
d6
27
d7
35
d8
54
d9
32
h
5.5
l3
60
Ø Zylindergriff
18
ØZylindergriff
18
