PVC-slang met stoffen inzetstuk
Slang Ø 15 x 9, 20 bar Vloeistoffen RO50Art.-Nr.: 1733477Leveranciersnummer: PGS15X9-50EAN: 4047322728324
VPE (Rol): 50 MeterAantal:
50 MeterPakketgeschikt
Prijs en voorraad zichtbaar na login
Beschrijving

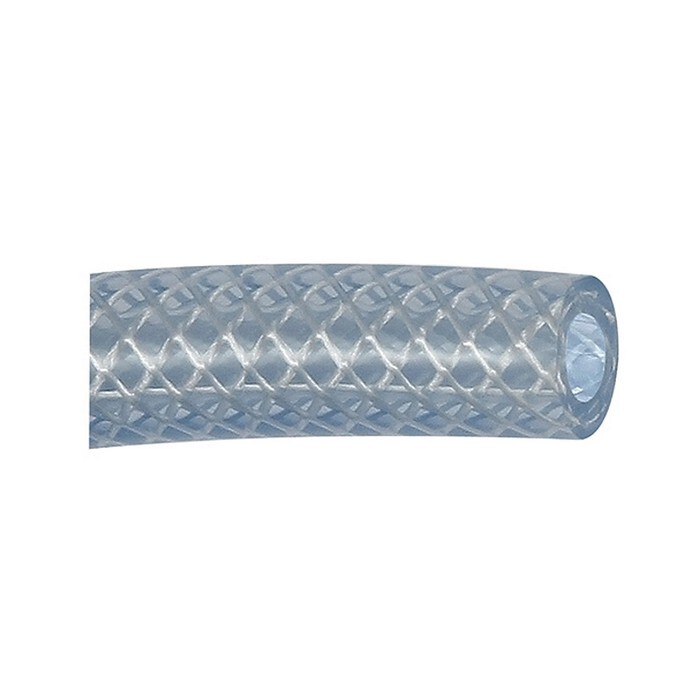

PVC braided hose, Temperature -20 °C to 60 °C, Hose ø 15x9, PN at 23 °C max. 15 bar air, 20 bar fluids, Roll of 50 m. Flexible, pressure-resistant and non-abrasive standard hose for a wide range of applications in industry, machinery and plant construction, commerce, manual trades and laboratories. - Complies with EU Regulation No. 10/2011 regarding contact with food, simulants A, B, C - Use of high-quality materials guarantees enhanced durability and UV protection
Specificaties
Bending radius min.
31 mm
Hose-Ø inside
9 mm
Hose-Ø outer
15 mm
Max. operating pressure at 23 °C
15 bar
Max. operating pressure liquids at 23 °C
20 bar
Roll length
50 m
Temperature range max.
60 °C
Temperature range min.
-20 °C
