PVC-slang met stoffen inzetstuk
Slang Ø 42 x 32, 25 bar lucht RO25Art.-Nr.: 1733490Leveranciersnummer: PGS42X32-25EAN: 4047322728485
VPE (Rol): 25 MeterAantal:
25 MeterPakketgeschikt
Prijs en voorraad zichtbaar na login
Beschrijving

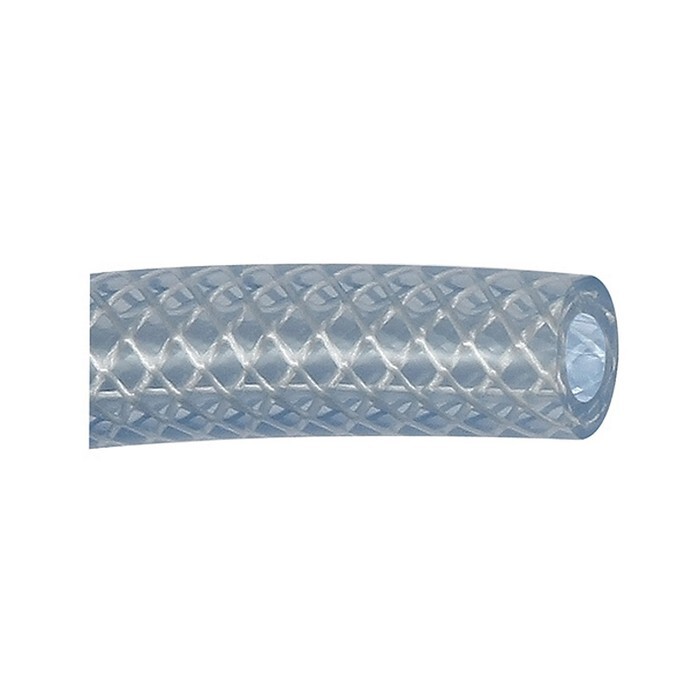

PVC braided hose, Temperature -20 °C to 60 °C, Hose ø 42x32, PN at 23 °C max. 5.25 bar air, 7 bar fluids, Roll of 25 m. Flexible, pressure-resistant and non-abrasive standard hose for a wide range of applications in industry, machinery and plant construction, commerce, manual trades and laboratories. - Complies with EU Regulation No. 10/2011 regarding contact with food, simulants A, B, C - Use of high-quality materials guarantees enhanced durability and UV protection
Specificaties
Bending radius min.
180 mm
Hose-Ø inside
32 mm
Hose-Ø outer
42 mm
Max. operating pressure at 23 °C
5,25 bar
Max. operating pressure liquids at 23 °C
7 bar
Roll length
25 m
Temperature range max.
60 °C
Temperature range min.
-20 °C
