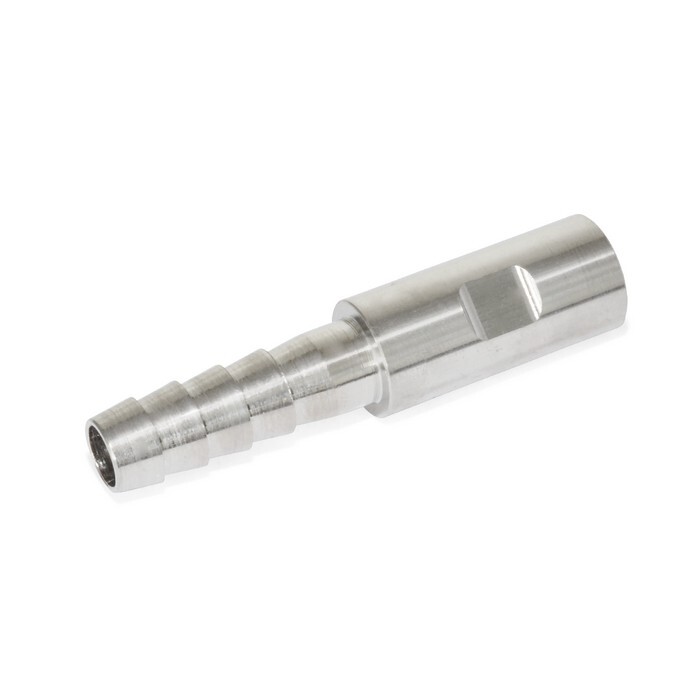

Slangadapter
GN 480.7-D10-M5-4 roestvast staalNI - Roestvrij staal
Art.-Nr.: 1350512Leveranciersnummer: 480.7-D10-M5-4EAN: 4045525367210
Aantal:
1 stukPakketgeschikt
Artikel in 22 varianten beschikbaar:
Prijs en voorraad zichtbaar na login
Beschrijving
Hose adapters GN 480.7 can attach e.g. air nozzles or coolant nozzles and their feed pipes with mountings clamps and hold them in position. The d2 / d3 thread and barbed fitting diameters are compatible with the most common bolt and internal hose diameters. Hose lines are attached to the barbed fitting with suitable hose clamps, securing them against slipping off.

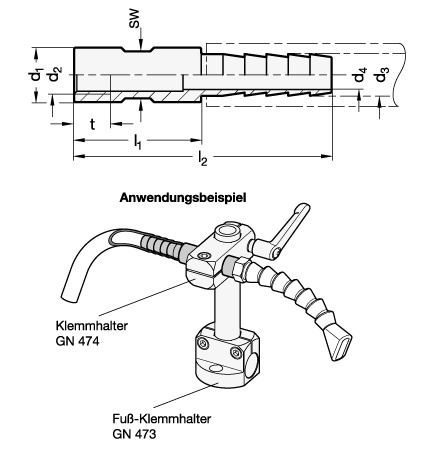

Specificaties
Buitendiameter d1
D 10
Doorvoerdiameter d3
4
Gewicht
0.016 kg
L1
30
L2
48
Materiaal
NI - Roestvrij staal
RoHS
Ja
SW
8
Schroefdraad d2
M 5
d4
2.5
