Automatisch smeertoestel
LAGD 125/FT220 Vullen LFFT 220 Kettingolie SKF MaProArt.-Nr.: 1526745Leveranciersnummer: LAGD 125/FT220douanetariefnummer: 84798997EAN: 7316579651936
VPE (Verpakking): 10 stukAantal:
10 stukPakketgeschikt
Prijs en voorraad zichtbaar na login
Beschrijving

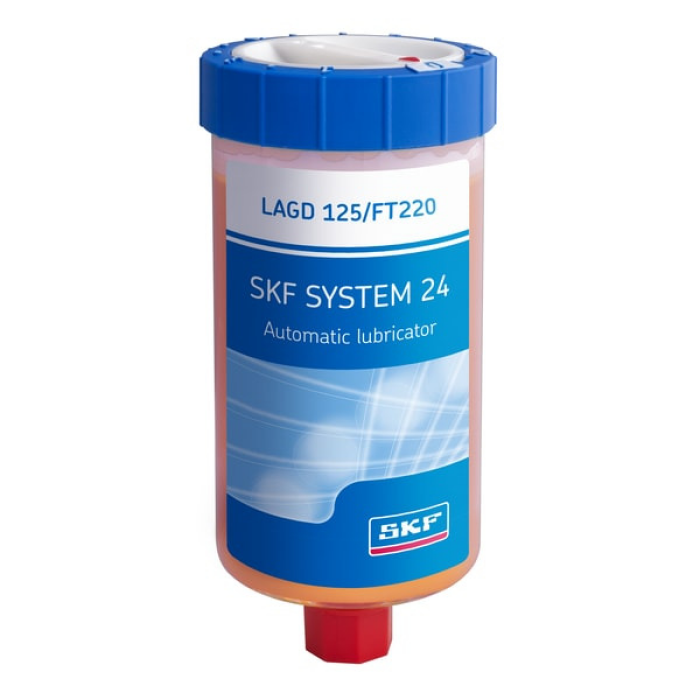

The SKF SYSTEM 24 LAGD 125/FT220 is filled with SKF LFFT 220 high temperature food grade chain oil. Our gas driven single point automatic lubricators are available in many configurations, pre-filled with SKF lubricants or empty, suitable for filling with oil. With tool-free activation and time-setting they allow easy, safe and accurate relubrication.
Specificaties
Antriebsmechanismus
Schutzgas-erzeugende Gaszelle
Connection thread
R 1/4
Eigensicherheitszulassung
II 1G Ex ia IIC T6 Ga, II 1D Ex ia IIIC T200 85°C Da, I M1 Ex ia I Ma
Lubricant operating temperature range
0 to +250 °C
Maximale Zulaufleitungslänge
1.5 m
Maximum pressure
5 bar
Nominelle Entleerungszeit
Adjustable, 1-12 months
Protection class (IP)
IP 68
Schmierstoffmenge
125 ml
Smeermiddel
LFFT 220
Umgebungstemperaturbereich
-20 to +60 °C
Weight
0,20 kg
power supply unit
Gas cell
