Schroefvergrendeling

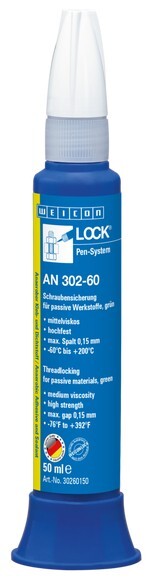

50 ml pen, hoge sterkte, gemiddelde viscositeit Weicon AN 302-60

Art.-Nr.: 1123095Leveranciersnummer: 10017878douanetariefnummer: 35069900EAN: 4047322345682

VPE (Verpakking): 12 stukAantal:  1 stukPakketgeschikt

Beschrijving

Lock AN 302-60, Anaerobic glue, High strength, Medium viscosity, Screw lock, Temp. -60 °C to 180 °C, 50 ml. High-strength bonding of passive materials such as stainless steel or aluminium, no pre-treatment required - Reduced assembly time - High strength - Handling strength: just 2 to 5 minutes - Final strength: just 2 to 4 hours - No need for pre-treatment with activator and therefore no additional emissions due to solvents

Specificaties

Breaking torque

15 - 20 Nm

Bundel

Pen

End hardness|(100 % of strength)

6-12 Hours

Festigkeit

hochfest

Fluoreszierend

For thread connection up to

M 20 R ¾\u201C

Further torque

30 - 35 Nm

Gap bridging up to max.

0,15 mm

Hand strength | at room temperature

5 - 10 Min.

Inhoud

50 ml

Kleur

green

Sales bundle

Plastic bottle

Schroefdraad

max. M20 R 3/4 inch

Shear strength Nmm² (DIN 54452)

25 - 35 N/mm²

Sterkteklasse

hoge sterkte

Temperaturbeständigkeit max.

200 °C

Temperaturbeständigkeit min.

-60 °C

Temperature resistance

-60°C to +200°C

Temperatuur

-60 tot +180 °C

Viscositeit

gemiddelde viscositeit
