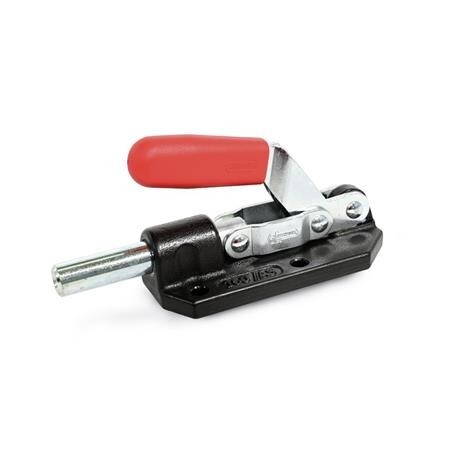

Duwstangspanner push/pull
GN 842-3100-AS Lichaam van gesmeed staalArt.-Nr.: 1214184Leveranciersnummer: 842-3100-ASdouanetariefnummer: 82057000EAN: 4045525386426
Aantal:
1 stukPakketgeschikt
Artikel in 10 varianten beschikbaar:
Prijs en voorraad zichtbaar na login
Beschrijving
Push-pull type toggle clamps GN 842 can be used for very high holding capacities thanks to their massive and sturdy body. On the size 70, the mounting holes are provided with cylindrical countersinks for the use of hexagon socket head screws DIN 912-M4.
Specificaties
A
40
FH Haltekraft
45000 N
FH in N holding force
45000
Gewicht
3.065 kg
L1
316
L2
300
Maat
3100
RoHS
Ja
Vorm
AS - Gesmeed basislichaam
b1
216
b2
76
d1
22
d2
M 14
d3
11
h1
137
h1 ≈
137
h2
56
h2 ≈
56
l2 ≈
300
l3
100
m1
54
m2
40
m3
70
m4
70
s
10
t
25
w Slag
100
