Beschermhoes
GN 864.1-42-ESAL - Aluminium
Art.-Nr.: 1481285Leveranciersnummer: 864.1-42-ESdouanetariefnummer: 84679200EAN: 4045525552104
Aantal:
1 stukPakketgeschikt
Prijs en voorraad zichtbaar na login
Beschrijving
Protective covers GN 864.1 are designed for power clamps GN 864 and protect the tensioning mechanism from penetrating dirt by covering the back side of the power clamp. The type FG is equipped with an anti-stick coating of Polytetrafluorethylene (PTFE) for protection against welding spray and corrosion. Socket cap screws and centering guide bushings are included.

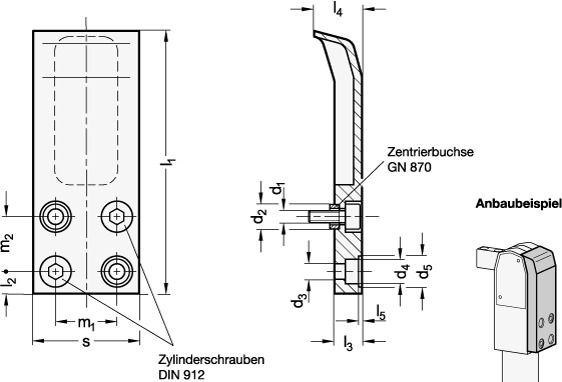

Specificaties
Gewicht
0.104 kg
L1
109
L2
6.5
Materiaal
AL - Aluminium
Oppervlakte
ES - geanodiseerd, zwart
RoHS
Ja
d1
M 6
d2
9
d3
6.5
d4
9
d5
11
für Kraftspanner GN 864 Größe
32
l3
12
l4
20
l5
2.1
m1
30
m2
25
s
42
