Zijdrukstuk met afdichting

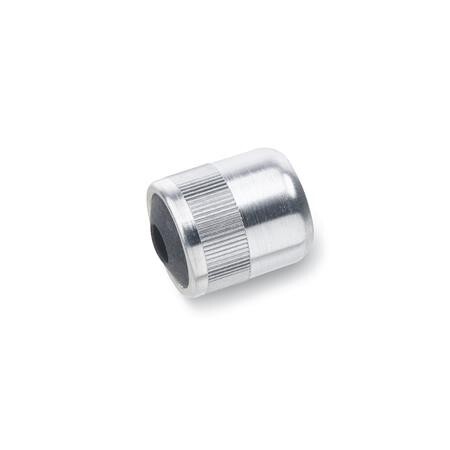

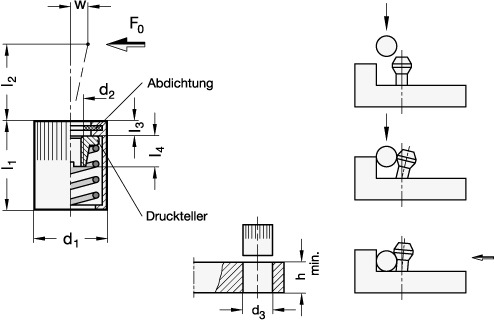

Side thrust pins GN 714 are the result of further development of GN 715. It is left to the customer to design his own pressure pin which can be screwed into the thrust plate. This design extends the field of applications for side thrust pins offering identical advantages i.e. they eliminate costly alternatives, are space saving and are simple to install. The knurled body requires bore to H8 tolerance only. For mounting the side thust pins a suitable mounting tool GN 715.1 is available (see table).
