Spanslot

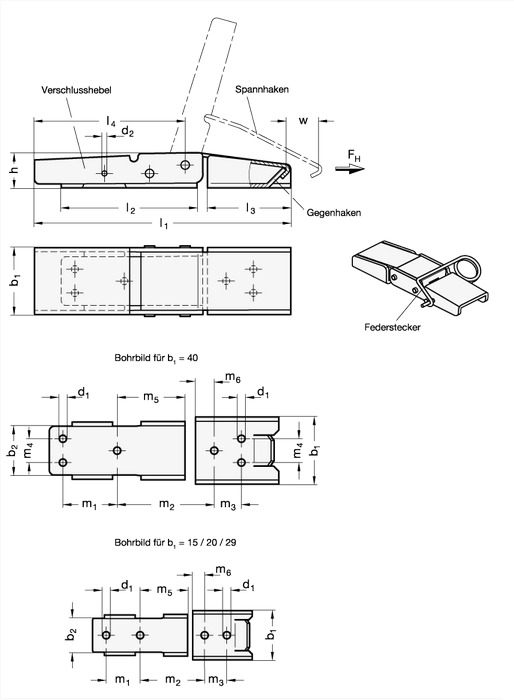

The outstanding features toggle latches GN 8330 are superior functionality and design. The integrated spring mechanism holds the locking lever and the clamping hook in the open position and allows effortless operation. Once the dead center is exceeded, the elasticity of the sheet metal parts will cause the toggle latch to close. In the clamped position, the required drill hole spacing is m2. With the stroke w of the clamping hook, the elements to be connected can be pulled together during clamping. The stainless steel toggle latch can be secured against opening inadvertently with the so-called spring cotter pins. The spring cotter pin is placed into the d2 bore hole. Sealing is also possible via d2. The retaining force given in the table is a guide value for the potentially static tensile stress load acting on the stainless steel toggle latch. Depending on the conditions of use (e.g. when exposed to vibrations or shock impact), the retaining force may be impaired.
