Geribbeld handwiel met draaigreep
GN 555-100-B12-D PF zwart, BorhungKU - Kunststoff
Art.-Nr.: 1205905Leveranciersnummer: 555-100-B12-Ddouanetariefnummer: 84879090EAN: 4045525292635
Aantal:
1 stukPakketgeschikt
Prijs en voorraad zichtbaar na login
Beschrijving
Bore diameter and plane face of the steel bushing in the handwheels GN 555 are machined only after pressing and clamped at the ring, ensuring a good concentricity and plane run of the wheel rim. The accurate fitting bore with the place face perpendicular to the bore diameter is guaranteed. Handwheels GN 555 are also available without hub bore.

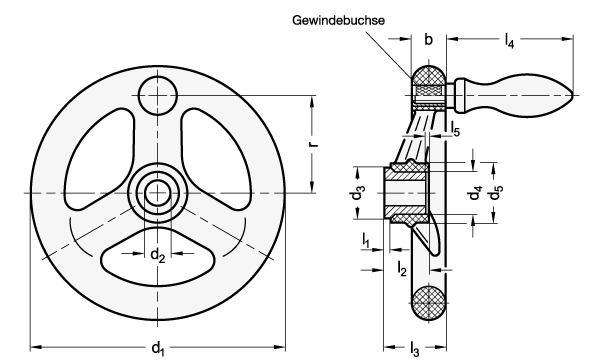

Specificaties
Anzahl der Speichen
3
Ballengriff
16
Boormarkering
B - zonder naafgroef
Bore identification
B - without hub groove
Boringdiameter d2
12
Gewicht
0.142 kg
Handraddurchmesser x1
98
Handwiel diameter d1
100
L2
23
Materiaal
KU - Kunststof
R
37
RoHS
Ja
Vorm
D - met draaibare handgreep
b
15
d3
25
d4
19
d5
28
l3
28
l3 ≈
28
l4
54.5
l4 ≈
54.5
l5
0.5
