Geribbeld handwiel met draaigreep
GN 555-250-B24-D PF zwart, BorhungKU - Kunststoff
Art.-Nr.: 1075876Leveranciersnummer: 555-250-B24-Ddouanetariefnummer: 84879090EAN: 4045525293373
Aantal:
1 stukPakketgeschikt
Prijs en voorraad zichtbaar na login
Beschrijving
Bore diameter and plane face of the steel bushing in the handwheels GN 555 are machined only after pressing and clamped at the ring, ensuring a good concentricity and plane run of the wheel rim. The accurate fitting bore with the place face perpendicular to the bore diameter is guaranteed. Handwheels GN 555 are also available without hub bore.

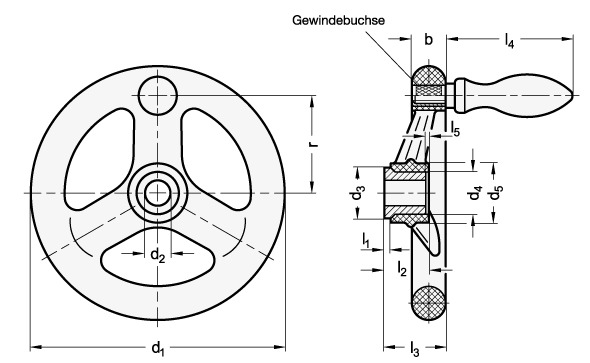

Specificaties
Anzahl der Speichen
3
Ballengriff
32
Boormarkering
B - zonder naafgroef
Bore identification
B - without hub groove
Boringdiameter d2
24
Gewicht
1.178 kg
Handraddurchmesser x1
247
Handwiel diameter d1
250
L1
7
L2
36
Materiaal
KU - Kunststof
R
98
RoHS
Ja
Vorm
D - met draaibare handgreep
b
29
d3
49
d4
38
d5
56
l3
58
l3 ≈
58
l4
105.5
l4 ≈
105.5
l5
1
