Artikel in 62 varianten beschikbaar:
Prijs en voorraad zichtbaar na login
Beschrijving

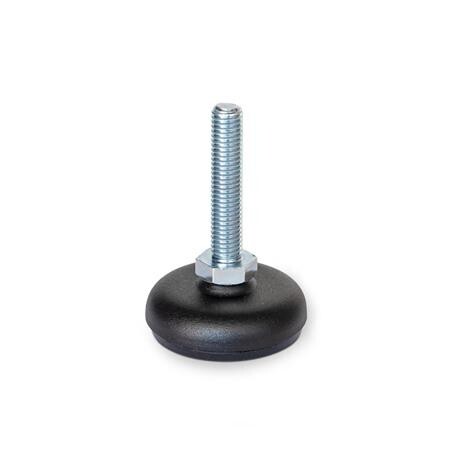

Leveling feet GN 30 will be delivered mounted and are not removable.
Specificaties
Gewicht
0.171 kg
Lengte l1 (S/SK)
60
Materiaal
ST - Staal
RoHS
Ja
Schroefdraad d2
M 10
Spilvariant
S - zonder moer, externe zeskant onderaan
Static load capacity in kN Design S/SK Form A1/A5
10
Statische Belastbarkeit in kNAusführung S / SKForm A1 / A5
10
Voetdiameter d1
60
Vorm (voetplaat)
A5 - staal, kunststof gecoat zwart, rubber inleg, zwart

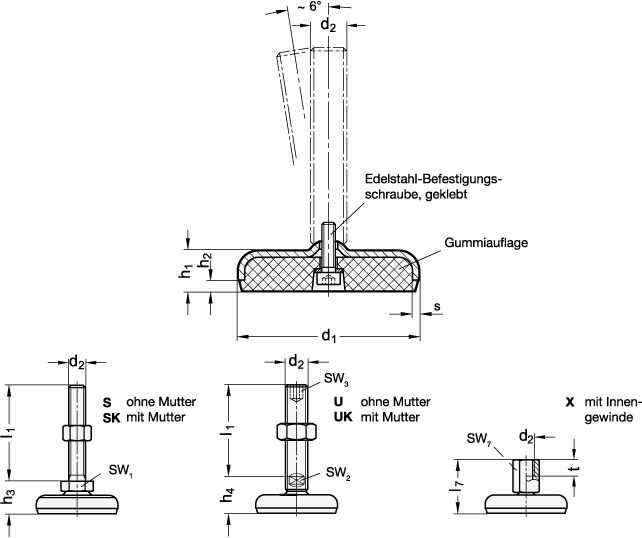

d1
60
d2
M 10
h1
16
h2
4
h3
24
s
3
sw1
17
