Beschrijving
Leveling feet GN 31 with vulcanised rubber (Types B3, B4, C3 and C4) and screw version W feature fewer dead spots owing to their construction method and are also easier to clean. Leveling feet GN 31 will be delivered mounted and are not removable.
Specificaties
Ausführung T / TK und U / UKForm B1 / B3 / C3
17
Ausführung V / VK und W Form B1 / B3 / C3
21
Ausführung V / VK und WForm B1 / B3 / C3
21
Gewicht
0.495 kg
Lengte l2 (V/VK)
100
Materiaal
ST - Staal
RoHS
Ja
Schroefdraad d2
M 16
Spilvariant
V - zonder moer, externe zeskant aan de bovenkant en platte moersleutel aan de onderkant
Voetdiameter d1
100
Vorm (voetplaat)
B1 - mat gestraald, rubber inleg, zwart

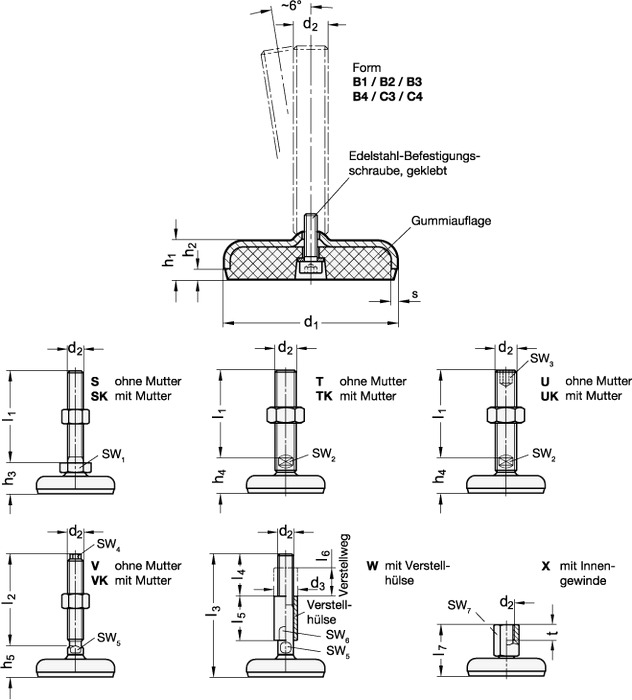

d1
100
d2
M 16
h1
20
h2
6
h5
31
s
3
sw4
10
sw5
12
