Artikel in 208 varianten beschikbaar:
Prijs en voorraad zichtbaar na login
Beschrijving

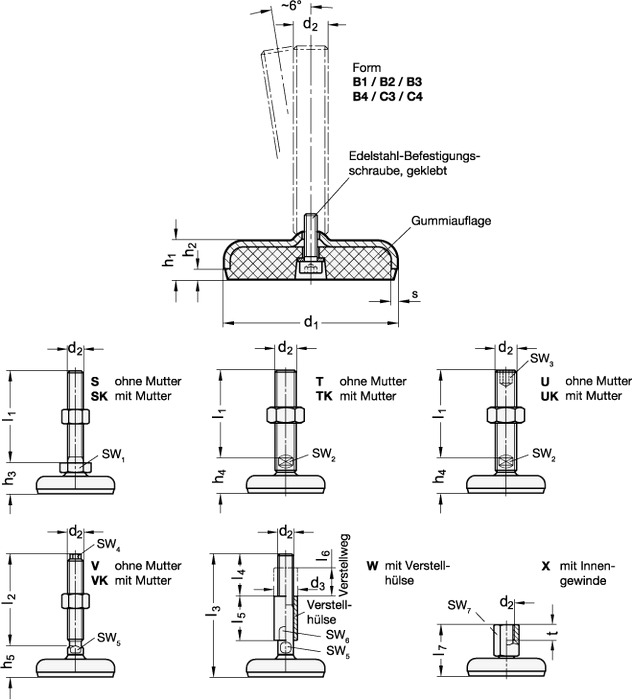

Leveling feet GN 31 with vulcanised rubber (Types B3, B4, C3 and C4) and screw version W feature fewer dead spots owing to their construction method and are also easier to clean. Leveling feet GN 31 will be delivered mounted and are not removable.
Specificaties
Ausführung X Form B1 / B3 / C3
8
Form B2 / B4 / C4
8
Gewicht
0.133 kg
Lengte l7 (X)
38
Materiaal
ST - Staal
RoHS
Ja
Schroefdraad d2
M 8
Spilvariant
X - Buitenzeskant met binnendraad
Voetdiameter d1
60
Vorm (voetplaat)
B2 - mat gestraald, rubber inleg, wit
d1
60
d2
M 8
h1
16
h2
4
s
3
sw7
14
t
8
