Ganter

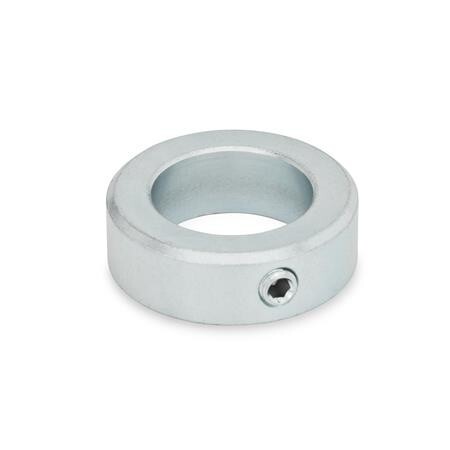

Kraag instellen

GN 705-5-E-ZB gegalvaniseerd, blauw gechromateerd
ST - Staal
Art.-Nr.: 1211391Leveranciersnummer: 705-5-E-ZBEAN: 4045525828315

VPE (Verpakking): 10 stukAantal: ​​ 1 stukPakketgeschikt
Artikel in 125 varianten beschikbaar:
Op korte termijn verkrijgbaar

Beschrijving
Shaft collars GN 705 essentially comply with the versions of DIN 705. GN 705 also contains a number of practical intermediate sizes in addition to the DIN-versions as well as Type E (grub screw with internal hexagon). The clamping is done radially on the shaft or axle surface. Together with a dimpled hole or a groove at the collet diameter, the set collars can be positioned exactly and, at the same time, damage to the clamping point can be avoided.
Specificaties
Binnendiameter d1
5
Gewicht
0.003 kg
Materiaal
ST - Staal
Oppervlakte
ZB - verzinkt, blauw gepassiveerd
RoHS
Ja
Vorm
E - Stelschroef met binnenzeskant DIN 914
b
6
d2
10
d3
M3x4
