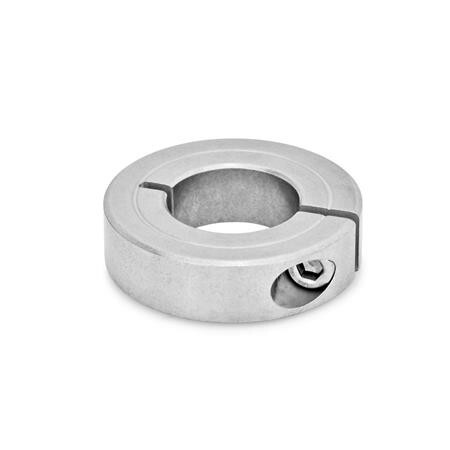

Stelring met sleuven
GN 706.2-20-B6-A4 roestvast staal AISI 316LA4 - Roestvrij staal
Art.-Nr.: 1351964Leveranciersnummer: 706.2-20-B6-A4douanetariefnummer: 73269096EAN: 4045525081895
Aantal:
1 stukPakketgeschikt
Artikel in 7 varianten beschikbaar:
Prijs en voorraad zichtbaar na login
Beschrijving
Semi-split shaft collars GN 706.2 can safely and simply be assembled by reducing the slot height with high clamping force and thus they act, for instance, like an end stop. The surface of the shaft or the axle is not damaged. The thread d3 for sizes d1 = 16 to 36 is designed as a through hole, for sizes d1 = 42 and larger, it is designed as blind hole.
Specificaties
A4
1.6
Boring d2 filter
6
Boring d21 (A4)
B 6
Buitendiameter d1
20
Gewicht
0.019 kg
Materiaal
A4 - Roestvrij staal
RoHS
Ja
b
9
d3
M 3
sNI
2.1
x ≈max. screw head protrusion
1.2
xmax. Überstand Schraubenkopf
1.2
