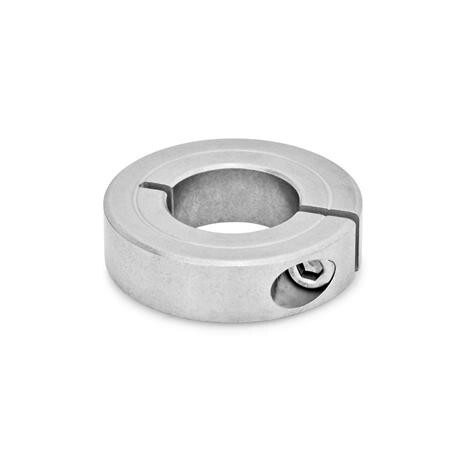

Stelring met sleuven
GN 706.2-48-B25-NI roestvast staalNI - Roestvrij staal
Art.-Nr.: 1211436Leveranciersnummer: 706.2-48-B25-NIdouanetariefnummer: 73269096EAN: 4045525529472
Aantal:
1 stukPakketgeschikt
Artikel in 7 varianten beschikbaar:
Prijs en voorraad zichtbaar na login
Beschrijving
Semi-split shaft collars GN 706.2 can safely and simply be assembled by reducing the slot height with high clamping force and thus they act, for instance, like an end stop. The surface of the shaft or the axle is not damaged. The thread d3 for sizes d1 = 16 to 36 is designed as a through hole, for sizes d1 = 42 and larger, it is designed as blind hole.
Specificaties
A4
1.6
Boring d2 (NI)
B 25
Boring d2 filter
22
Boring d2 filter2
25
Buitendiameter d1
48
Gewicht
0.120 kg
Materiaal
NI - Roestvrij staal
RoHS
Ja
b
15
d3
M 5
sNI
3
x ≈max. screw head protrusion
0
xmax. Überstand Schraubenkopf
0
