Positie-indicator, slingersysteem

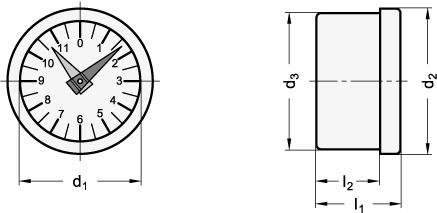

Position indicators GN 000.8 are suitable for installation in various types of operating elements. Points of special interest are: Housing, spindles of pointers and sight glass are all in one piece welded by ultrasonic process. They are spray water proof and corrosion proof (Protection class IP 67). The pendulum system is mounted on ball bearings for accurate display, and operational up to 60°. The reducing ratio shows the number of revolutions (long red pointer) required per 1 complete revolution of the small black pointer.
