Elektronische positie-indicator

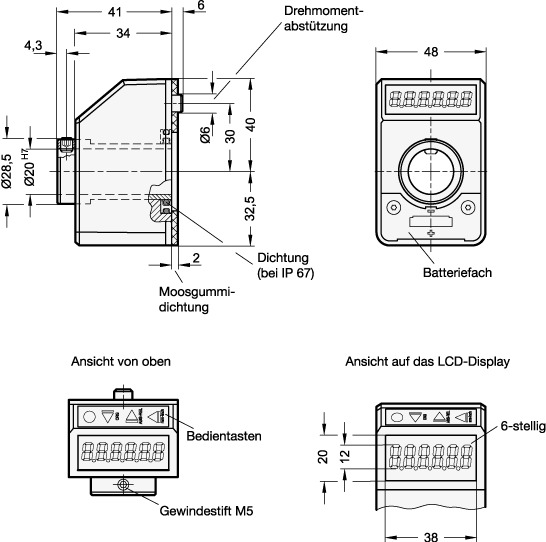

Electronic position indicators GN 9053 with LCD display are extremely versatile in use, with virtually every counting option selectable directly at the device via the operating keys. The power necessary for the display is supplied by a long-life battery. The indicators are plugged directly onto the spindle via their hollow shaft, with the torque support defining the position for the mounting site. Mounted in this way, the indicators will detect the rotary spindle movement and show the appropriate value on the display. Both housing sections are ultrasonically welded, making the housing highly tight, stable and compact. The foam rubber seal prevents the transmission of vibrations and also acts as a seal.
