Elesa

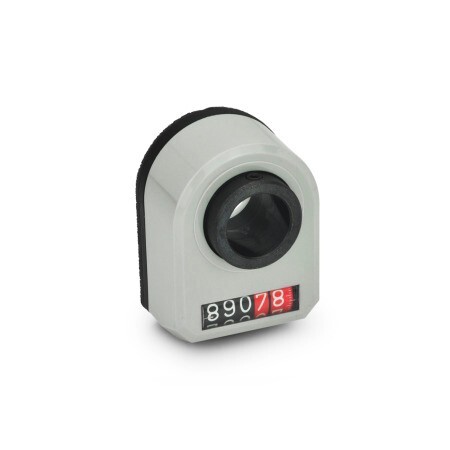

Positie-indicator grijs

GN 953-0004.0-FR-L-GR Elesa CE.83732
KT - Kunststof
Art.-Nr.: 1216465Leveranciersnummer: 953-0004.0-FR-L-GREAN: 4045525523289

Aantal: ​​ 1 stukPakketgeschikt
Artikel in 964 varianten beschikbaar:
Op korte termijn verkrijgbaar

Beschrijving
Position indicators GN 953 have a direct coupled drive with digital indication. The two housing parts are ultra-sonically welded, thus the housing is particularly sturdy and compact. The foam rubber seal prevents the transmission of vibration to the counter and also acts as a seal. The numbers are easily legible and they are even enlarged by the magnifying effect of the sight glass.
Specificaties

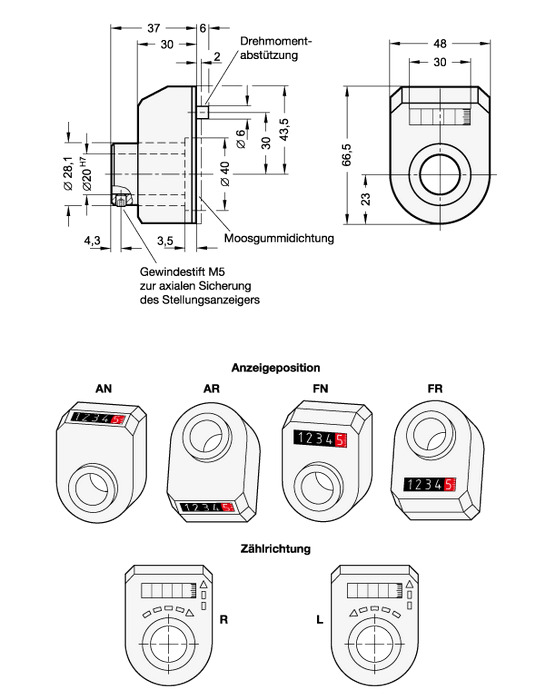

Anzeigeposition
FR - straight, bottom
Gewicht
0.097 kg
Inbouwpositie
FR - recht, onder
Kleur
GR - grijs, RAL 7035
Komt overeen met schroefdraadsteek
4
Materiaal
KT - Kunststof
Max. speed/min.
625
Max. toerental/min.
625
RoHS
Ja
Teller
0004.0
Vorm
L - Numerieke waarde neemt toe bij linksom draaien
Weergave na 1 spindelomwenteling
0004.0
Zählrichtung
L - Numerical value increasing with anti-clockwise rotation
Zählwerk (mit einer Dezimalstelle)
0004.0
