Elesa

Positie-indicator oranje

GN 953-0004.0-AN-L-OR Elesa, laag, li-oprijzend
KT - Kunststof
Art.-Nr.: 1216456Leveranciersnummer: 953-0004.0-AN-L-ORdouanetariefnummer: 90318080EAN: 4045525523180

Aantal: ​​ 1 stukPakketgeschikt
Artikel in 964 varianten beschikbaar:
Op korte termijn verkrijgbaar

Beschrijving

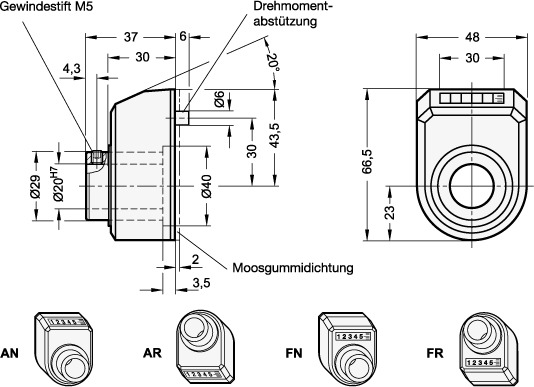

Position indicators GN 953 have a direct coupled drive with digital indication. The two housing parts are ultra-sonically welded, thus the housing is particularly sturdy and compact. The foam rubber seal prevents the transmission of vibration to the counter and also acts as a seal. The numbers are easily legible and they are even enlarged by the magnifying effect of the sight glass.
Specificaties
Anzeigeposition
AN - diagonal, top
Gewicht
0.097 kg
Inbouwpositie
AN - diagonaal, boven
Kleur
OR - oranje, RAL 2004
Komt overeen met schroefdraadsteek
4
Materiaal
KT - Kunststof
Max. speed/min.
625
Max. toerental/min.
625
RoHS
Ja
Teller
0004.0
Vorm
L - Numerieke waarde neemt toe bij linksom draaien
Weergave na 1 spindelomwenteling
0004.0
Zählrichtung
L - Numerical value increasing with anti-clockwise rotation
Zählwerk (mit einer Dezimalstelle)
0004.0
