Ganter

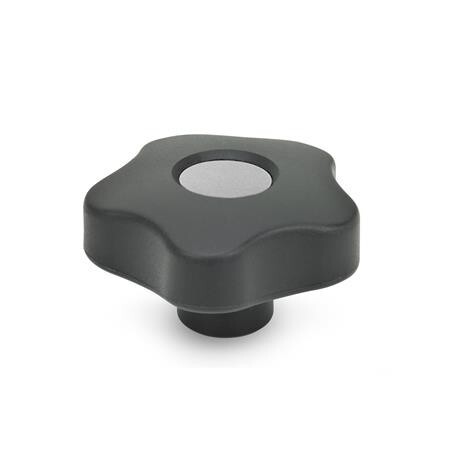

Stergreep, afsluitdop grijs

GN 5337.2-50-M8-E-DGR
KU - Kunststof
Art.-Nr.: 1484143Leveranciersnummer: 5337.2-50-M8-E-DGREAN: 4045525670716

Aantal: ​​ 1 stukPakketgeschikt
Artikel in 151 varianten beschikbaar:
Op korte termijn verkrijgbaar

Beschrijving
Characteristic of the star knobs GN 5337.2 is the 5 lobes. They not only give the knobs a specific style but this shape has also enabled the operator to achieve a higher torque.
Specificaties
Gewicht
0.043 kg
Greepdiameter d1
50
Kleur afdekkap
DGR - grijs, RAL 7035, mat
Materiaal
KU - Kunststof
RoHS
Ja
Schroefdraad d2 (Vorm E)
M 8
Vorm
E - met afdekkap (blind gat met schroefdraad)
d5
19
d6
15
h1
32
h2
14
t1
20
