Producten
Ganter

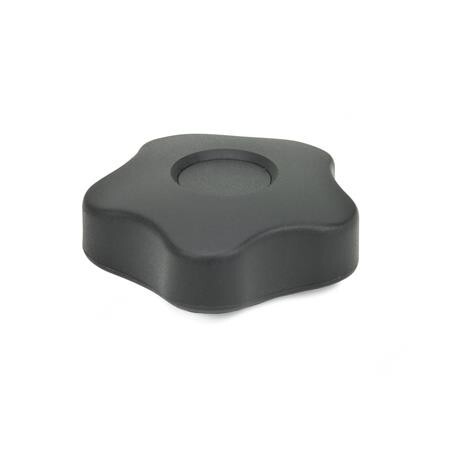

Stergreep, dop zwart

GN 5331-50-M10-B
PA - kunststof, polyamide
Art.-Nr.: 1484363Leveranciersnummer: 5331-50-M10-Bdouanetariefnummer: 39263000EAN: 4045525677135

Aantal: ​​ 1 stukPakketgeschikt
Artikel in 200 varianten beschikbaar:
Op korte termijn verkrijgbaar

Beschrijving
Characteristic of the star knobs GN 5331 is the 5 lobes. They not only give the knobs a specific style but this shape has also enabled the operator to achieve a higher torque.
Specificaties
Gewicht
0.027 kg
Greepdiameter d1
50
L1
10
L2
17.5
Materiaal
PA - kunststof, polyamide
RoHS
Ja
Schroefdraad d2
M 10
Vorm
B - met afdekkap
d3
19
d4
16
h1
20
h2
1.2
l3
9.5
