Stergreep, zelfdovend
GN 5337.2-50-M10-E-SVSV - Kunststof
Art.-Nr.: 1481231Leveranciersnummer: 5337.2-50-M10-E-SVdouanetariefnummer: 39263000EAN: 4045525548466
Aantal:
1 stukPakketgeschikt
Artikel in 4 varianten beschikbaar:
Prijs en voorraad zichtbaar na login
Beschrijving

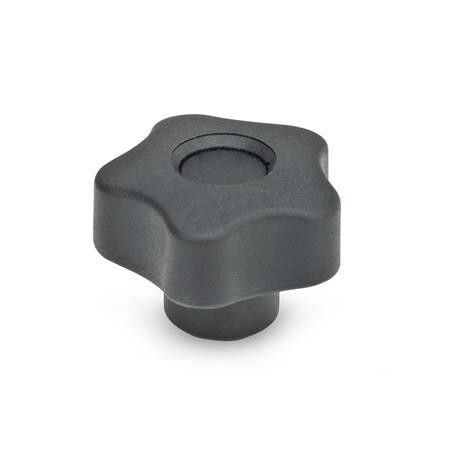

Star knobs GN 5337.2 version SV are produced from a plastic material, which according to UL 94 V-O is classified as a self extinguishing material. This classification to UL 94 V-O (Underwriters Laboratories) determines the resistance of a plastic material to fire. This comprises a test on a piece of plastic material of a specific form and dimensions in a vertical position to be set alight, whereby the flame according to V-O must extinguish itself without burning droplets developing.
Specificaties
Gewicht
0.039 kg
Greepdiameter d1
50
Materiaal
SV - Kunststof
RoHS
Ja
Schroefdraad d2
M 10
Vorm
E - met afdekkap (blind gat met schroefdraad)
d5
19
d6
15
h1
32
h2
14
t1
20
