Elesa

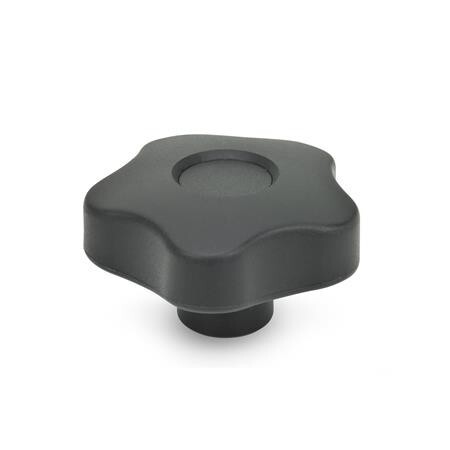

Ster knop met blind gat bus

GN 5337.2-63-B8-C Elesa 70001
KU - Kunststof
Art.-Nr.: 1205242Leveranciersnummer: 5337.2-63-B8-CEAN: 4045525282209

Aantal: ​​ 1 stukPakketgeschikt
Artikel in 151 varianten beschikbaar:
Op korte termijn verkrijgbaar

Beschrijving
Characteristic of the star knobs GN 5337.2 is the 5 lobes. They not only give the knobs a specific style but this shape has also enabled the operator to achieve a higher torque.
Specificaties

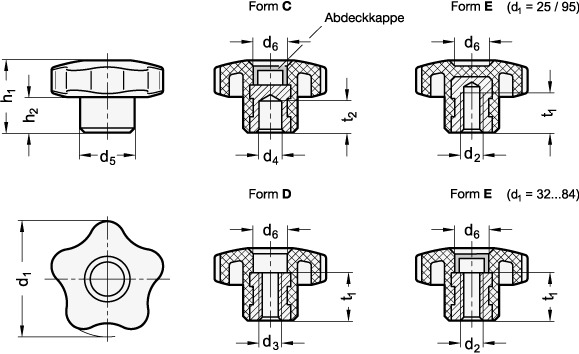

Boringdiameter d4 (Vorm C)
B 8
Gewicht
0.052 kg
Greepdiameter d1
63
Materiaal
KU - Kunststof
RoHS
Ja
Vorm
C - met afdekkap (blind gat H9)
d5
22
d6
19
h1
37
h2
16
t2 min.
20
