Ganter

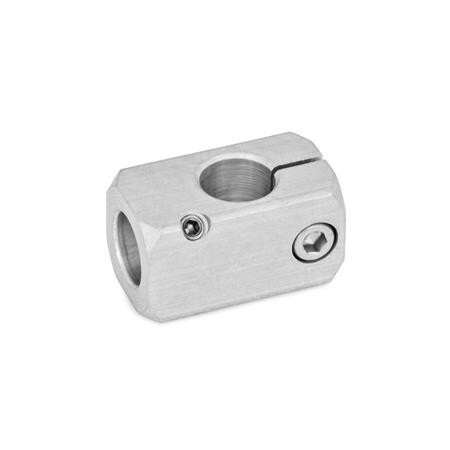

T-klemhouder

GN 476-B8-B8-A-MT mat
AL - Aluminium
Art.-Nr.: 1203591Leveranciersnummer: 476-B8-B8-A-MTEAN: 4045525638983

Aantal: ​​ 1 stukPakketgeschikt
Artikel in 24 varianten beschikbaar:
Op korte termijn verkrijgbaar

Beschrijving

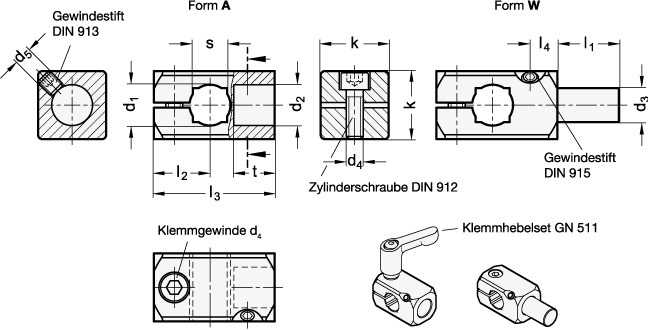

The T-mounting clamps GN 476 (Type W) are an alternative to twistable two-way mounting clamps GN 475 if high angular forces are required. In the standard version, the clamping screw at the clamping thread d4 is a socket cap screw with hexagonal socket DIN 912. It can be replaced by a clamping kit GN 511 (article code see table of dimensions).
Specificaties
Boring d1
B 8
Boring d2
B 8
Gewicht
0.020 kg
Klemhendel voor d4
511-M4-16
L1
16
L2
13
Materiaal
AL - Aluminium
Oppervlakte
MT - mat, trilbodem
RoHS
Ja
Vorm
A - met gat
d4 Klemmgewinde
M 4
d5
M 4
k
16
l3
26
l4
5.5
t
8
