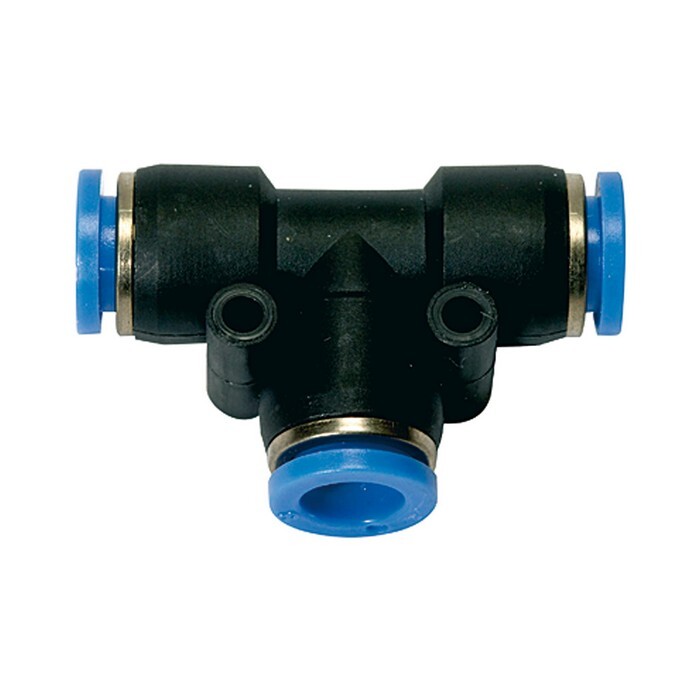

T-connector
SD10 Kunststof, blauwe serieArt.-Nr.: 1114256Leveranciersnummer: 138.010EAN: 4047322026345
VPE (VE NW): 10 stukAantal:
1 stukPakketgeschikt
Artikel in 7 varianten beschikbaar:
Prijs en voorraad zichtbaar na login
Beschrijving
Push-in T-connector »Blue Series«, for hose exterior Ø 10 mm, pmax short term 15 bar, Plastic / nickel-plated brass. Push-in fittings series manufactured in plastic and nickel-plated brass. All parts are suitable for use with hoses, tubes or pipes made of plastic.
Specificaties
Arbeitsdruck max. kurzzeitig
15 bar
For outer hose Ø
10 mm
L1
27,9 mm
Loosening ring
Plastic
Materiaal
Kunststof/messing vernikkeld
Medium
Compressed air
Recommended hose
PU or PA (nylon)
Sealing material
NBR
Series
Blue series
Temperature range max.
80 °C
Temperature range min.
-20 °C
Temperatuurbereik
-20 tot +80 °C
Werkdruk
10 bar
Working pressure max.
10 bar
Working pressure min.
-0,95 bar
