Beschrijving

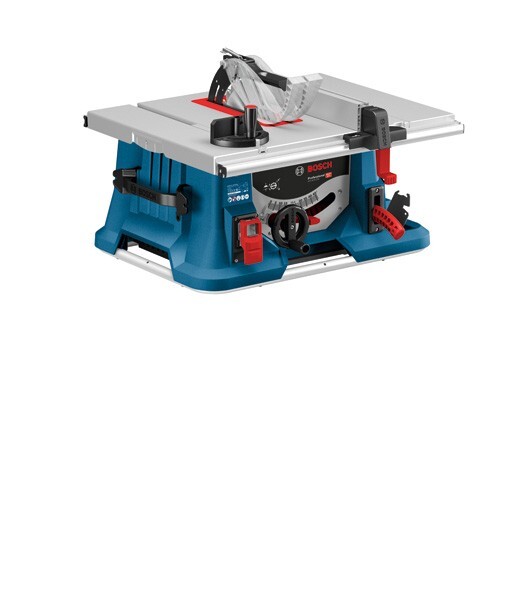

Table Saw GTS 635-216, The GTS 635-216 Professional is the compact, yet powerful, table saw for multi-purpose use. Its 1,600 W motor power is ideal for a cutting height up to 70 mm and for a rip capacity up to 635 mm. The low weight of only 22 kg, its ergonomic handles, and protective on-board storage make transport genuinely easy and safe. The table saw works extremely precisely and, due to its integrated slide carriage, table-widener, and table extension, it is exceptionally versatile. The GTS 635-216 Professional has been desgined for sawing of user-defined sizs, rip cutting, and concealed cuts, especially of board materials, wood, wood composites, and laminate. It is suitable for mounting on a variety of table saw stands and uses the Click & Clean System for the professional power tools from Bosch. The table saw features a spindle lock, a soft start function, restart protection, and a safety switch for increased user protection. 1 x circular saw blade, Optiline Wood, 216 x 30 x 1.6 mm, 22 (2 608 838 410), Cardboard box
Specificaties
Diameter zaagbladboring
30 mm
Gereedschapafmetingen (breedte x lengte x hoogte)
658 x 500 x 332 mm
Gewicht
22.0 kg
Max. snijcapaciteit rechts
635 mm
Neigingsinstelling
45 ° / 0 °
Neigingsinstelling links
45 °
Neigingsinstelling rechts
0 °
Nominaal ingangsvermogen
1600 W
Onbelast toerental
5500 U/min
Spanning
240 V
Tafelafmetingen
500 x 658 mm
Tafelafmetingen, breedte
658 mm
Tafelafmetingen, lengte
500 mm
Zaagbladdiameter
216 mm
