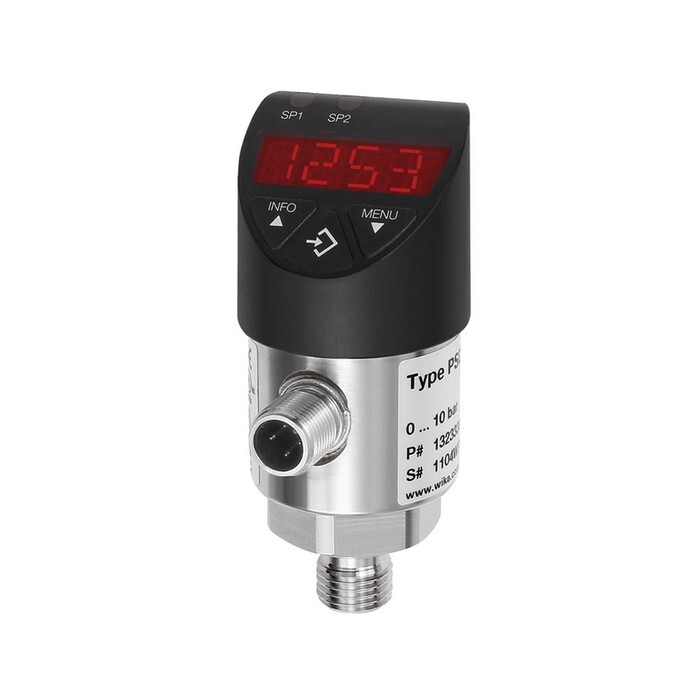

Elektronische drukschakelaar bar, Proz G 1/4, elec M 12x1 4-polig Digitaal display, CrNi-staal, type PSD-30

Electr. pressure switch, Digital display, M12x1, 4-pole, Measuring material temp. -20°C to 85°C, G 1/4, Measurement range 0-1 bar. Electronic pressure switch with digital display, made of stainless steel, for monitoring and measuring pressures in liquids, gases or compressed air. Applications: Machine tools, compressors and pumps, hydraulic and pneumatic systems, machinery in general, factory automation. Customisable switching functions: Switching / switch-back point or window function, switching delay times, NO and NC functions, min. / max. memory. Password protection for maximum security. The display and case can be turned 300° for mounting in any position. Three large keys for intuitive operation with an easy-to-read display conforming to VDMA Standard 24574-1. Optional on request: Pressure switch with additional analog signal 4 - 20 mA, DC 0 - 10 V and 5-pin plug.
