Verticale klem met drukschroef GN 810.3-130-CL-NI roestvast staal

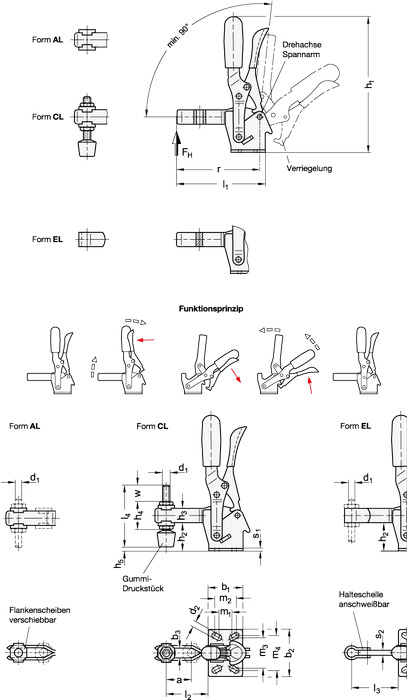

Toggle clamps GN 810.3 are latched in both end positions. In the clamped position, this prevents unintentional opening or opening caused by vibrations, and in the open position, it prevents self-closing of the toggle clamp, such as due to an extended clamping arm. The latching can be disabled with a single hand to allow for opening / closing. They work according to the toggle principle: lever and clamping bar move in the same direction. In the clamped position the operating lever is in its vertical position. Toggle clamps in the U-bar version with two flanged washers (type AL) can accommodate an application specific clamping screw. A clamping screw with neoprene rubber tip is also included for type CL. Type EL version can be utilized by welding the clasp which can then accommodate an application specific hold-down fastener component, to hold the work piece in place.
