Beschrijving

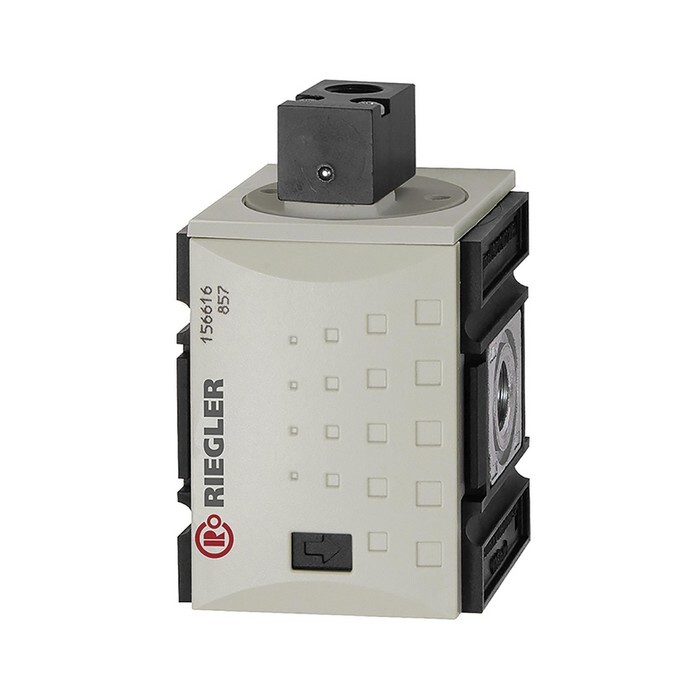

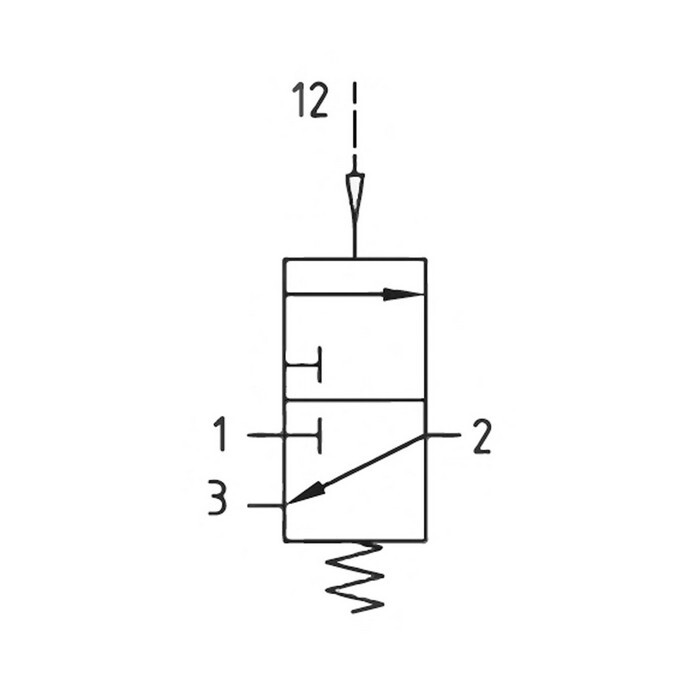

3/2-way valve »FUTURA«, pneumatically actuated, Size 1, G 1/4, Exhaust G 1/4, Input pressure max. 16 bar, Temp. -10 °C to 50 °C. Pneumatic systems or parts of systems can be switched on and off by means of an pneumatic signal. 3/2-way type including silencer. When they are switched off, the system is exhausted at the same time.
