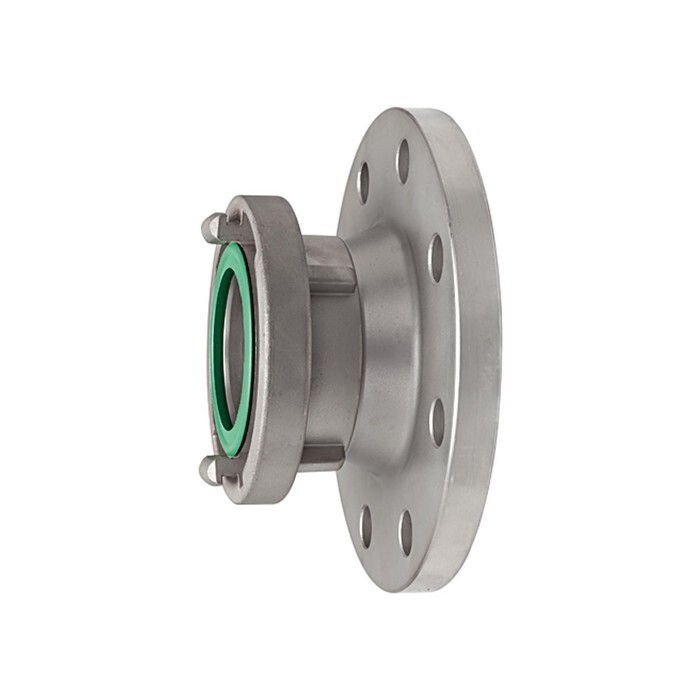

Vermindering
Storz 110-A, KA 133 mm Roestvrij staal V4AArt.-Nr.: 1733011Leveranciersnummer: 3406.133100EAN: 4047322256797
Aantal:
1 stukPakketgeschikt
Prijs en voorraad zichtbaar na login
Beschrijving
Storz reducer, Stainless steel V4A, Storz size 110-A, Tappet distance 133, Flange DN 100, Operating pressure max. 16 bar. High-quality series in V4A stainless steel. For quick and simple hose connections. User friendly, the coupling elements are joined without damaging the seal. Applications: Industrial plant engineering, shipbuilding, chemical industry.
Specificaties
Anzahl Schraubenlöcher
8
Betriebsdruck max.
16 bar
Betriebstemperatur max.
200 °C
Betriebstemperatur min.
-15 °C
Dichtmaterial
FKM
Flens
DN 100
Knaggenabstand 1
133 mm
Lochkreisdurchmesser
180 mm
Material
Edelstahl V4A
Storz-Größe
110-A
