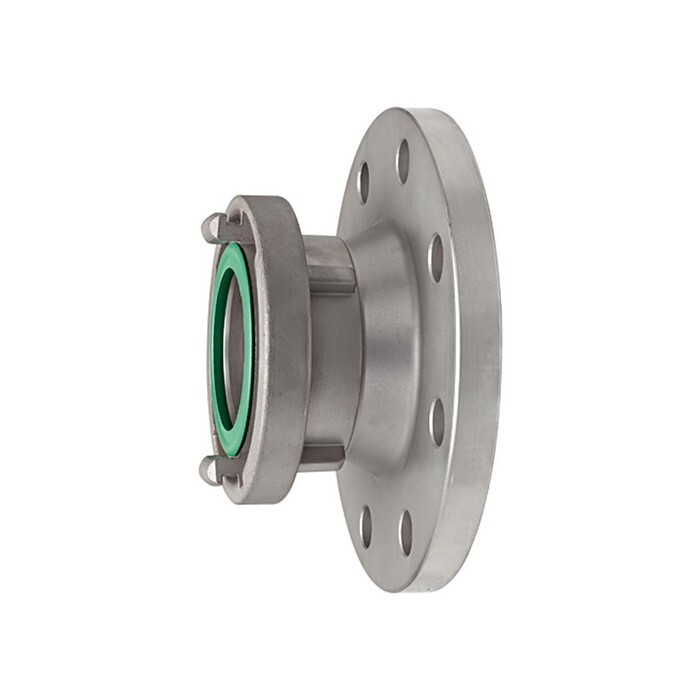

Vermindering
Storz 75-B, KA 89 mm Roestvrij staal V4A 3406.8980Art.-Nr.: 1733016Leveranciersnummer: 3406.8980EAN: 4047322256773
Aantal:
1 stukPakketgeschikt
Prijs en voorraad zichtbaar na login
Beschrijving
Storz reducer, Stainless steel V4A, Storz size 75-B, Tappet distance 89 mm, Flange DN 80, Operating pressure max. 16 bar. High-quality series in V4A stainless steel. For quick and simple hose connections. User friendly, the coupling elements are joined without damaging the seal. Applications: Industrial plant engineering, shipbuilding, chemical industry.
Specificaties
Anzahl Schraubenlöcher
8
Betriebsdruck max.
16 bar
Betriebstemperatur max.
200 °C
Betriebstemperatur min.
-15 °C
Dichtmaterial
FKM
Flens
DN 80
Knaggenabstand 1
89 mm
Lochkreisdurchmesser
160 mm
Material
Edelstahl V4A
Storz-Größe
75-B
