Vergrendeling met handgreep

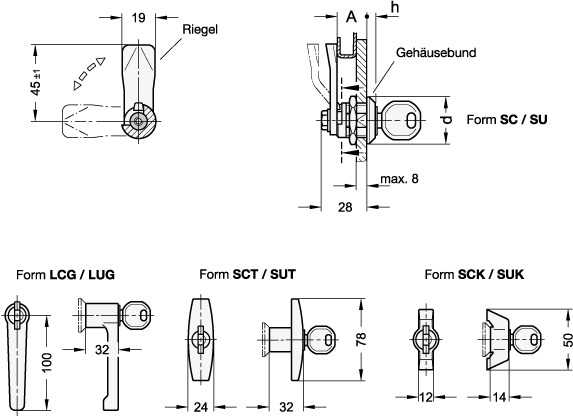

Lockable latches GN 115 lock by a turning operation limited to 90° which moves the latch arm in the locked position behind the door frame. The bevels of the latch arm ease the closing of the door. Latch arms are available with different bend angles to cover a latch arm distance A from 4 to 50 mm. The latches are delivered with 2 keys and loosely enclosed latch arm. The key can be removed in both end positions. Types with a standard lock allow every lock to be opened with the same key. For the types with different lock, there are more than 200 different lock variants, whose keys are marked by numbers.
