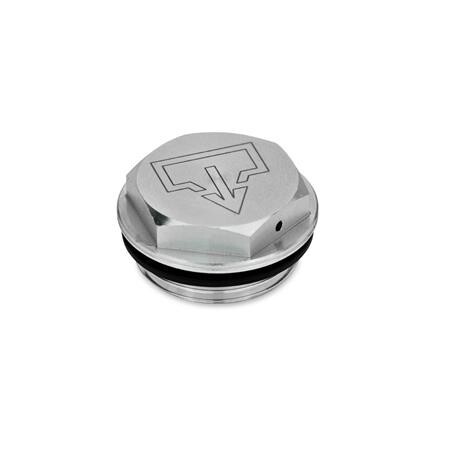

Afvoerplug
GN 741-26-G1/2-AS-2 Aluminium, ventilatieopening, 120°CAL - Aluminium
Art.-Nr.: 1212593Leveranciersnummer: 741-26-G1/2-AS-2douanetariefnummer: 83099090EAN: 4045525365759
VPE (Verpakking): 10 stukAantal:
1 stukPakketgeschikt
Prijs en voorraad zichtbaar na login
Beschrijving

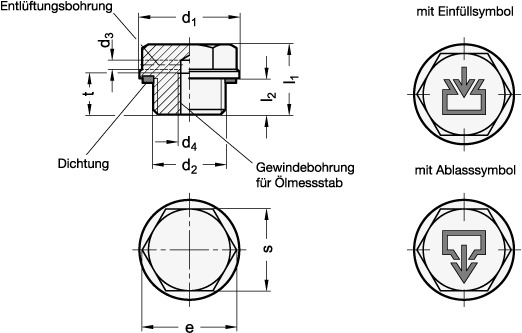

Threaded plugs GN 741 are fitted with outside diameter d1 to suit screw holes with BSP threads to DIN 3852. The sealing ring is embedded in a radial recess on the flat side. This prevents the seal from being lost or squeezed out during tightening.
Specificaties
Buitendiameter d1
26
Gewicht
0.016 kg
Inch draad d2
G 1/2
L1
16
L2
8.5
Materiaal
AL - Aluminium
Ontluchtingsgat
2 - met ontluchtingsgat
RoHS
Ja
Vorm
AS - met DIN-afvoersymbool, blanco
d3 Entlüftungsbohrung
2
d4
M 5
e
24.3
e ≈
24.3
s
21
t
8
